2D vision inspection systems use industrial cameras and specialized lighting to calculate critical dimensions like Inner Diameter (ID) and Outer Diameter (OD), while simultaneously detecting surface defects.

Direct Context & Core Metric Function

A 2D machine vision system captures a flat, two-dimensional image of a part to calculate three primary metrics:

Inner Diameter (ID): The distance between the innermost boundaries of a circular hole or bore.

Outer Diameter (OD): The distance between the outermost boundaries of a circular part or feature.

Defect Measurements: The area, length, or count of anomalies (e.g., scratches, burrs, dents, or inclusions) that deviate from a golden master image.

Hero Section

Headline: High-Speed 2D Vision Inspection Systems.

Sub-headline: Automate quality control, catch surface defects instantly, and ensure 100% precision on fast-moving production lines.

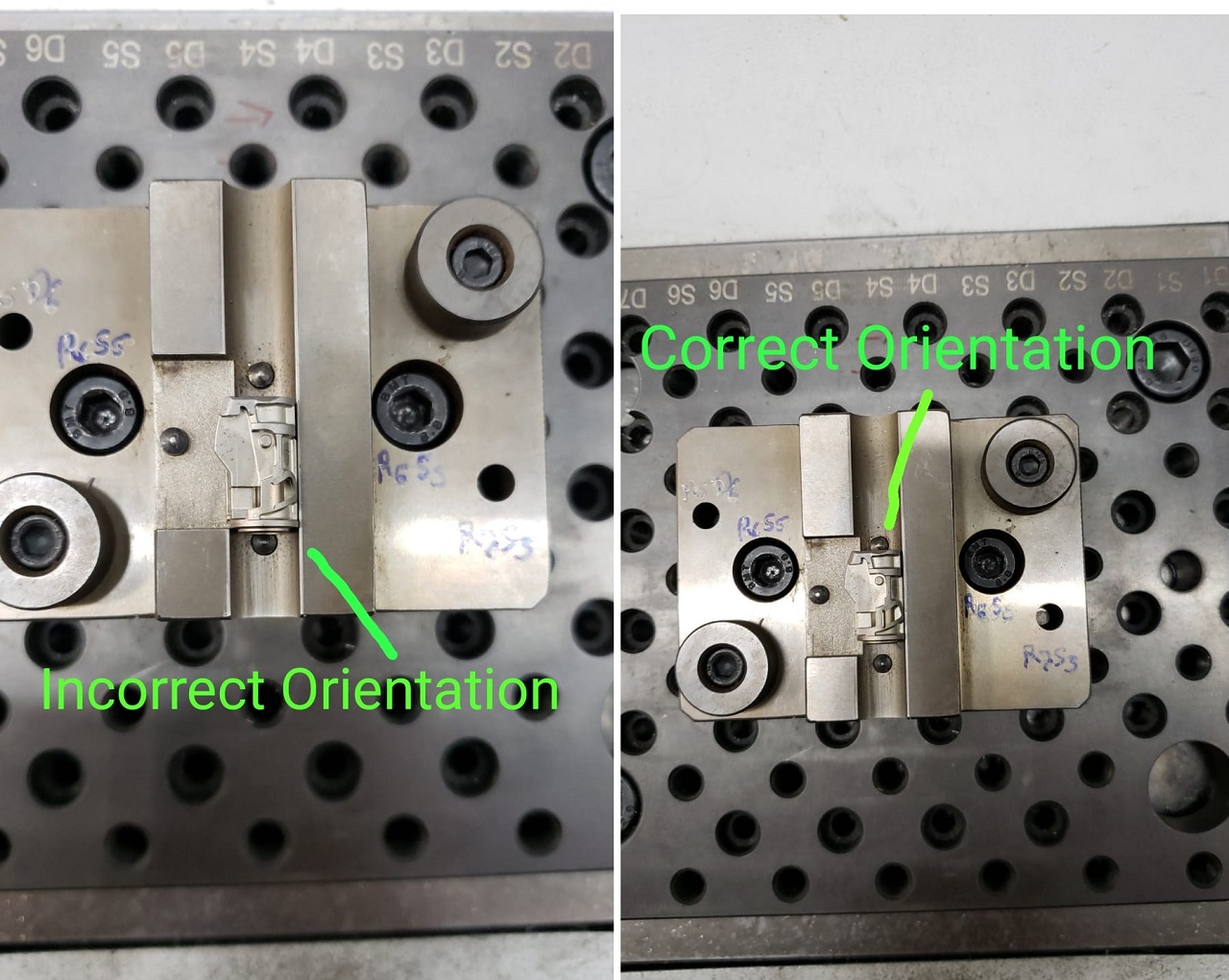

A 1D orientation check evaluates product alignment relative to a reference axis (typically the X-axis). By measuring variations in signal intensity, edge positions, or distinct surface markers across a single line scan, the system quickly determines whether a part is facing the right way before downstream assembly or packaging

Ensure 100% accurate component positioning, directional alignment, and rotation verification at line speed.

Directional Verification: Detects if a symmetrical or asymmetrical part is facing the correct way (e.g., front vs. back, top vs. bottom).

Rotational Alignment: Measures the precise angular orientation of a product before assembly, labeling, or packaging.

Feature Detection: Identifies micro-features like notches, bevels, text, logos, or pin configurations to determine correct alignment.

Continuous Line Speeds: Performs checks in milliseconds, preventing line stoppages and reducing scrap material.

Business Benefits

Zero Defects: Eliminates manual inspection errors and prevents misaligned components from entering subsequent assembly stages.

Protects Equipment: Prevents downstream machine damage caused by trying to assemble or press a wrongly oriented part.

Ensure 1D object presence checking to guarantee that critical components are exactly where they need to be. By utilizing cost-effective, high-speed 1D vision sensors (laser distance sensors or single-line scan profiles), this technology delivers rapid pass/fail results to keep your production line running without interruption.

Key Capabilities & Applications

Component Counting: Verifies that the correct number of items are present in a tray or blister pack.

Packaging Verification: Checks for the presence of caps on bottles, lids on tubs, or tamper-evident seals.

Assembly Verification: Ensures vital internal parts (like O-rings, screws, or electronic components) are seated before moving to the next stage.

Height & Thickness Validation: Catches double-fed sheets of material or crushed packaging by tracking height deviations.

Label Detection: Confirms a label has been applied by measuring reflectivity changes on the product surface.

Why Choose 1D Vision Inspection?

Unmatched Speed: Processes data in microseconds, easily matching the pace of the fastest manufacturing lines.

Cost-Efficient: Delivers the precise data you need without the steep price tag of full 2D or 3D vision systems

Seamless Integration: Outputs straightforward discrete I/O signals (Pass/Fail) directly to your existing PLC or automation network.

High Reliability: Immune to ambient lighting changes, factory reflections, and target color variations.
